Surface Boxes
Highly engineered Fiberglass Below-Grade Enclosure Boxes

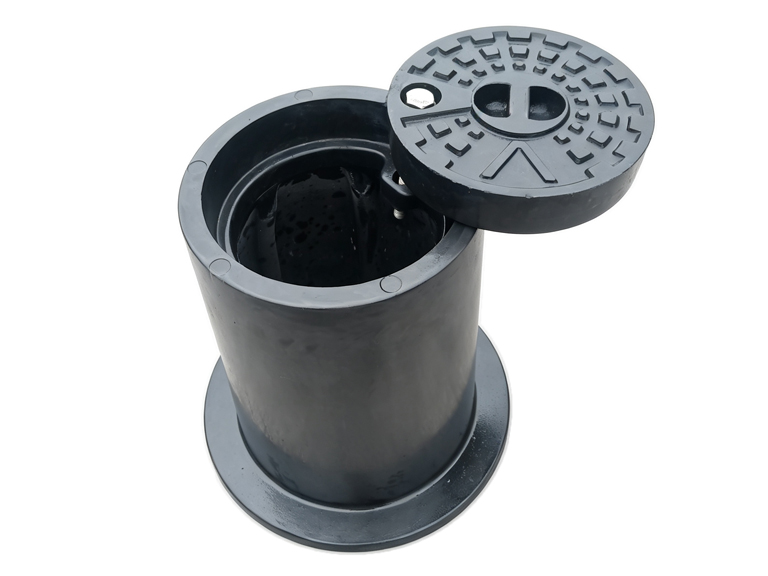

Underground Surface Box

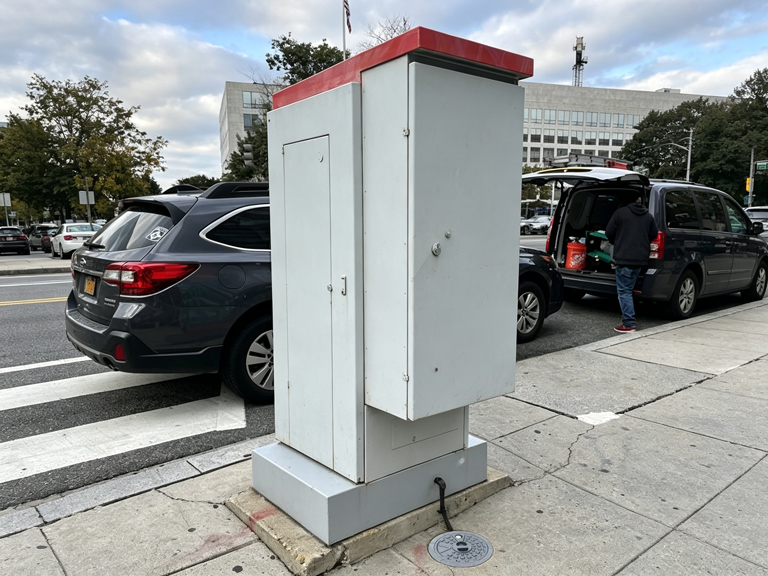

Jinmeng surface boxes provide enhanced protection and connection points for electrical wiring and communication networks from harsh environments, physical damage, and tampering. This allows power outages before maintenance operations and reduces safety risks associated with exposed wiring.

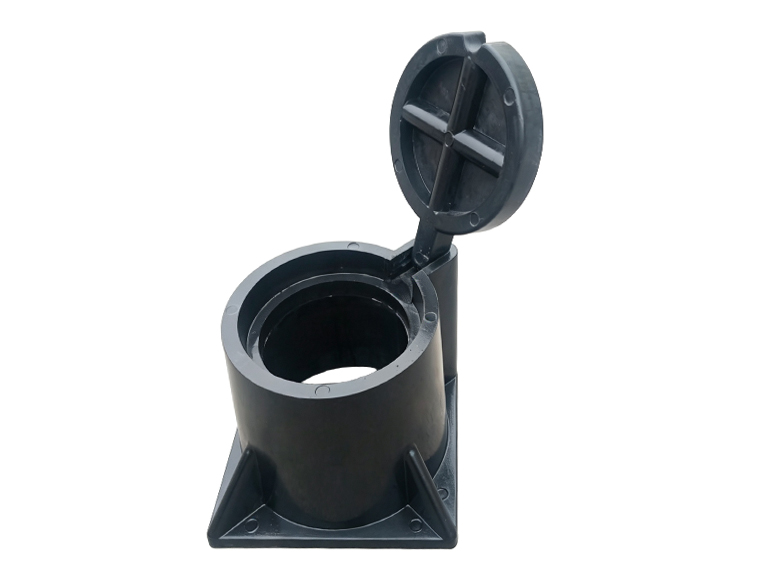

Below-Grade Hydrant Box
Below-Grade Hydrant Box offer a range of practical benefits that make them a smart choice for fire hydrant deployment. Most importantly, they protect valve and pipe connections from physical damage and rusting. This improved reliability helps prevent flooding from a sheared overhead fire hydrant.

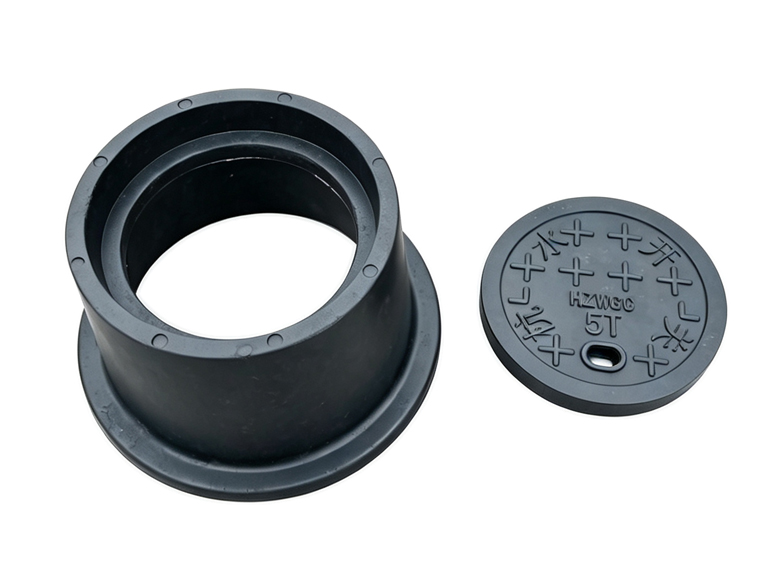

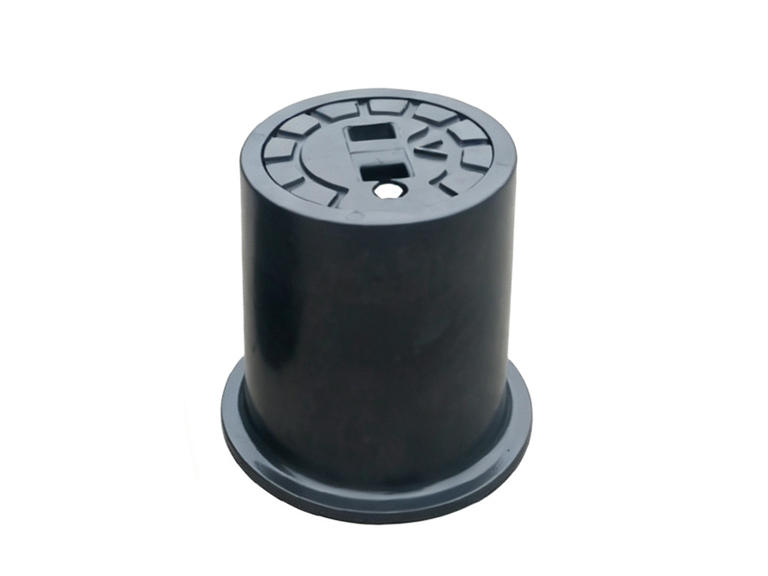

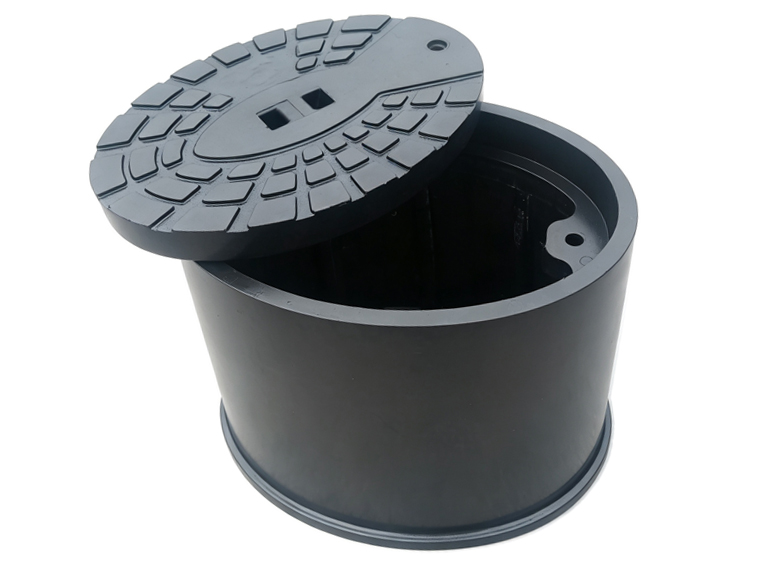

Surface Box
JM-MV001C Lid: 340*245*35, C/O: 325*205 H: 310 (mm)
Load Rating: 25 Ton, EN124 C250
Weight: 15.6 kg
Surface Box
JM-MV002C Lid: ⌀180 h30, C/O: ⌀160 Base: ⌀250 H: 200 (mm)
Load Rating: 25 Ton, EN124 C250
Optional Load Range: 1.5 ton, 5 ton,25 ton.
Surface Box
JM-MV003C Lid: ⌀120 h30, C/O: ⌀95 Base: ⌀190 H: 270 (mm)
Load Rating: 25 Ton, EN124 C250
Optional Load Range: 1.5 ton, 5 ton,25 ton.
Surface Box
JM-MV304A Lid: ⌀200 H: 30, C/O: ⌀160 Base: ⌀300 H: 160 (mm)
Load Rating: 5 Ton, EN124 A50
Optional Load Range: 1.5 ton, 5 ton,
Surface Box
JM-MV304B Lid: ⌀180 H: 30, C/O: ⌀160 Base: ⌀250X250 H: 200 (mm)
Load Rating: 5 Ton, EN124 A50
Optional Load Range: 1.5 ton, 5 ton,
